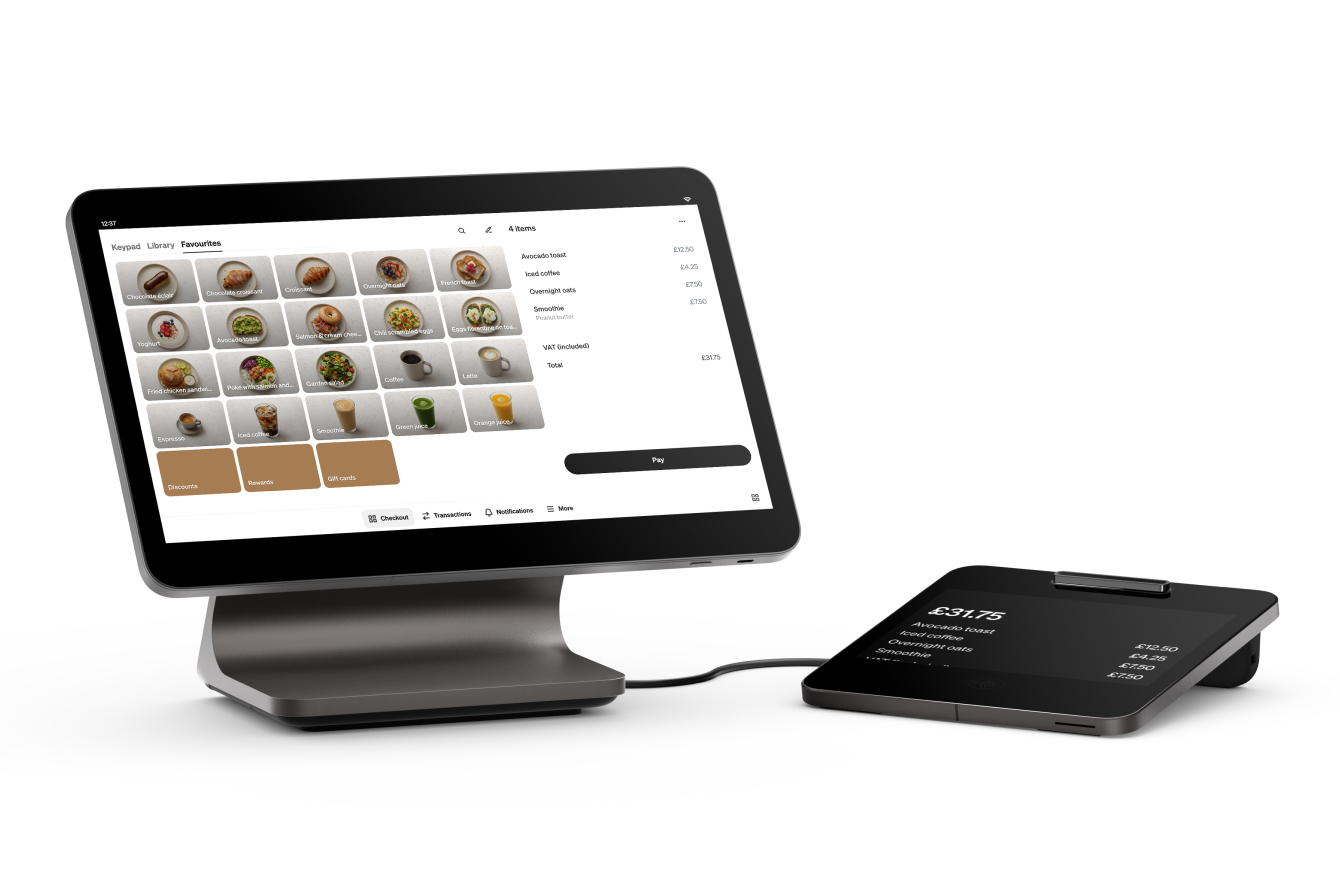

Square Register Technical Specifications

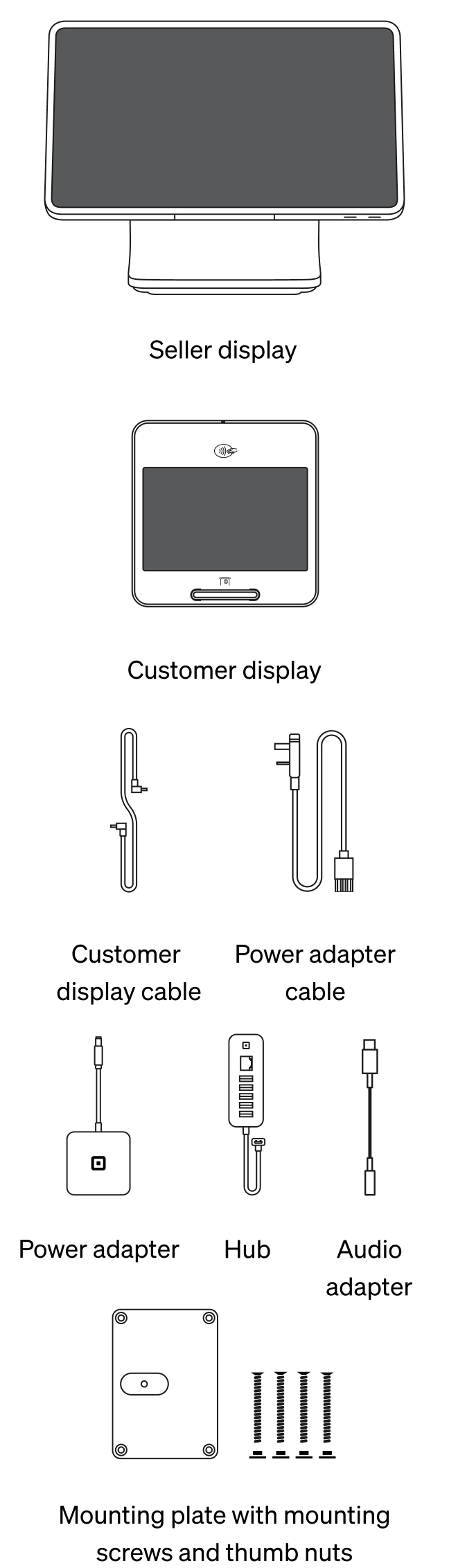

In the box
Included when you buy Square Register
  • Square Register
  • Customer display
  • Power adapter cable
  • Power adapter
  • Accessory hub
  • 1-metre customer display cable
  • Mounting plate with cleat
  • Mounting toolkit
Optional Cable
Get an extended display cable for Square Register

Extended Display Cable (£7)
A 2-metre customer display cable to easily set up checkouts with extended countertops, order windows or protective barriers. Shipped separately.
Available at checkout or by visiting Accessories.

A 1-metre display cable comes standard.

Accepts
Card payments

Chip and PIN and magnetic stripe cards
EMV chip cards

Contactless payments

Contactless payments (NFC)
Apple Pay, Google Pay, Samsung Pay, contactless cards and devices

Processing fees

1.75%
Per contactless or chip and PIN payment

No monthly fees or long-term commitments.

Learn more about payments

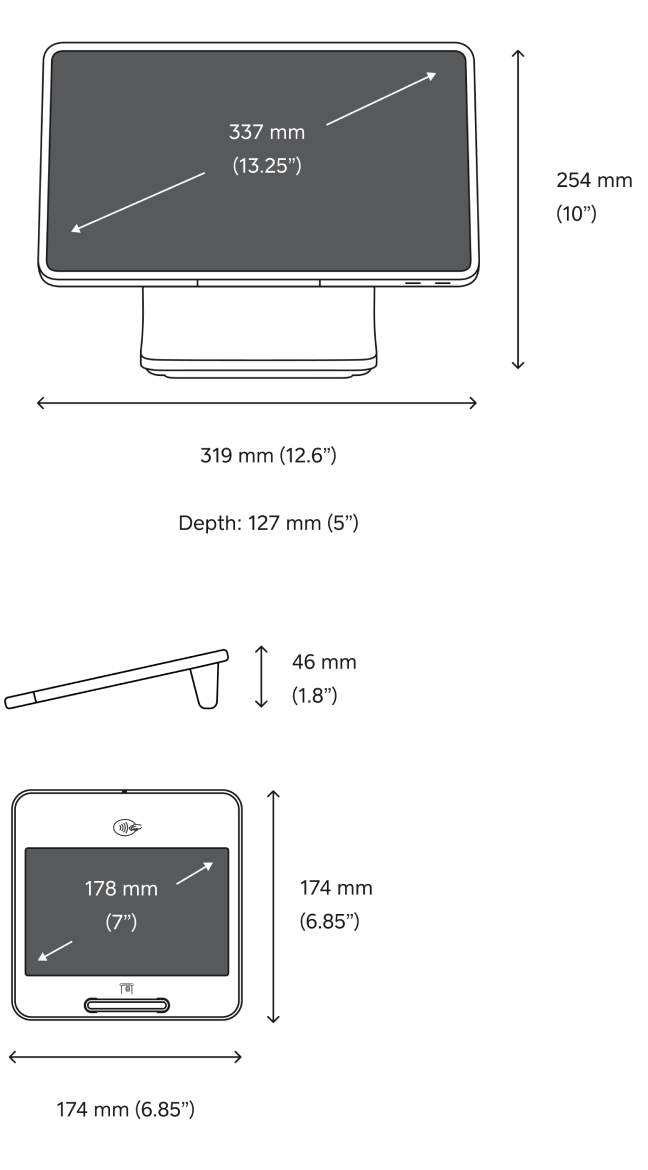

Dimensions
Square Register dimensions and measurements
Connectivity

Accessory Hub
The Hub has five USB ports for accessories such as a barcode scanner, receipt printer or cash drawer. It also includes an Ethernet port for includes internet access.

Square Register can also connect to Wi-Fi. Bluetooth is supported for select receipt printers.

Offline payments²
Let customers make chip and PIN and contactless payments (even when you’re temporarily offline) – just reconnect to the internet within 24 hours to upload any transactions. Additional terms apply.

Learn more about offline payments

Software
Square Register POS compatibility

Free, powerful software to run any business
Square has a variety of POS options to best support you and your unique business needs. Square Register works with all Square point-of-sale solutions.

Learn about Square Point of Sale
Learn about Square Appointments
Learn about Square for Restaurants
Learn about Square for Retail

Colour

Slate

Materials

Aluminum
Moulded plastic
Glass
Rubber

Weight

Square Register: 1.8kg
Customer display: 544g
Power kit: 363g

Power modes

Square Register must be plugged into a power source at all times.

Countertop space

A 360 mm (14”) circle is recommended to mount and unmount Square Register.

Mounting options

Drill mount or adhesive mount

Accessories

Square Register is compatible with a wide range of third-party hardware accessories, like receipt printers and barcode scanners.

Shop accessories for Square Register
See all accessories you can connect to Square hardware

Support

Square Register is covered by a two-year limited warranty. Plus, you can get free help from our customer support team 24/7. Access the Square Register guide for handy tutorial videos and common troubleshooting steps, or get in touch with our product specialists.
