WindFall Stand for Samsung Galaxy Tab A 10.1" Wi-Fi Kit Set Up Guide
Included in the Kit
|Heckler WindFall Stand for Samsung Galaxy Tab A 10.1”|
|Square Reader for contactless and chip|
|Square Reader for magstripe|
|Ethernet receipt printer|
|Receipt printer paper|
|Printer-driven cash drawer|
|Samsung Galaxy Tab A 10.1”|
|Dock for Square Reader|
|Ethernet kitchen printer (for food and beverage)|
|Kitchen printer paper (for food and beverage)|
|Security lock, wire, and anchor point|
|USB wall charger|
Set Up Your WindFall Stand
What You Need to Get Started
If you purchased the optional Ethernet kitchen printer, you also need an Ethernet Internet connection (e.g., cable modem, router, and Ethernet cable).

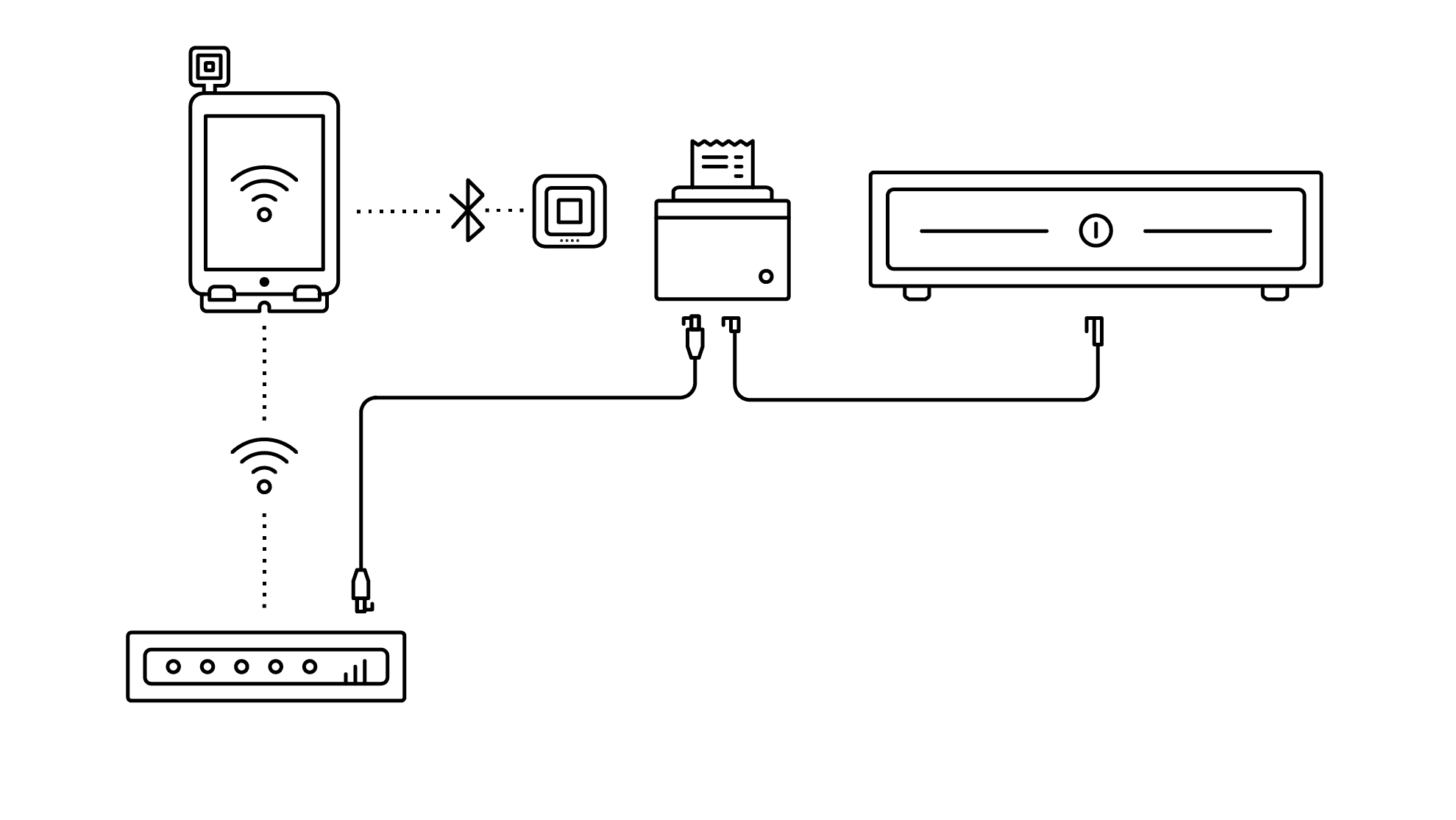

Follow these steps to assemble your kit:
Step 1. Download our free point-of-sale app
If you haven’t already, download Square Point of Sale from the Google Play to your Galaxy Tab.
Step 2. Check your router
Make sure there are two free output ports on your router to plug things in. Keep your receipt printer close to the router for easy setup.
Step 3. Connect to Wi-Fi
Head into the Wi-Fi settings in the Settings app on your Galaxy Tab. Choose your router’s network and wait a few seconds for the signals to communicate. If you’re having trouble connecting, unplug the router’s power cord and Ethernet cable, then plug everything back in.
Step 4. Secure your Galaxy Tab
Use the provided L-shaped hex key to unscrew the top two screws on the face of the WindFall Stand. Slide the Galaxy Tab inside and refasten the screws to keep it in place. Make sure the Galaxy Tab’s headset jack is on the right. If you purchased the security lock, wire, and anchor point, go ahead and get things locked down. Superglue the anchor point to your device, slip in the lock, and then loop the wire around a fixed point and attach it to the lock.
Step 5. Charge and set up the Square Reader for contactless and chip
Use the included micro USB cable to charge your Square Reader for contactless and chip. Connect the micro USB end to your reader, and the other end to a computer or outlet using a USB power adapter (sold separately).
Once it’s charged, press and release the button on your reader to turn it on. Go to settings on your device and make sure Bluetooth is turned on. Open your Square app and tap the three horizontal lines to access the Settings menu.
Tap Settings > Hardware > Card Readers > Contactless + Chip Reader.
Put your reader into pairing mode by pressing the reader’s button for 3 to 10 seconds. Remove your finger as soon as you see orange flashing lights.
Note: If you see red flashing lights, you’ve held the button for too long, and you need to try again. When connected, the reader will be listed as Ready.
Step 6. Plug in the Square Reader for magstripe
To connect your Square Reader for magstripe, simply plug it into your Galaxy Tab’s headset jack.
Step 7. Connect your receipt printer
Connect one end of your printer’s Ethernet cable to your printer and the other end to one of your router’s output ports. Plug your printer into a power source, then switch on the power button. Place your receipt printer on the counter next to your WindFall Stand.
Step 8. Connect your kitchen printer (optional)
Just as your did with the receipt printer, connect one end of the Ethernet cable into your kitchen printer and the other end into another of your router’s output ports. Plug your printer into a power source, then switch on the power button.
Step 9. Add paper to your printer(s)
Lift the lever on the top-right side of your printer, open it up, and rest the printer paper inside. The trick is to keep the roll underhand, leave a little slack, and then shut the top with some paper sticking out. Once you get a solid green light, it’s good to go.
Step 10. Set up your cash drawer
Take the interface cable (labeled CD-014A) from the cash drawer packaging. The larger end plugs into the bottom of your cash drawer, and the smaller end plugs into the DK port on the back of your receipt printer.
Your Square app is designed to automatically open the cash drawer after every cash sale. Or you can use the included manager keys to manually open the cash drawer.
Step 11. Test it out
Open your Square Point of Sale app. Tap the three lines on the bottom left to access the Settings sidebar menu.
Tap Settings > Hardware > Printers. From here, you’ll see all available printers. Select your printer from the list and make sure to turn on Receipts, Order Tickets, and/or Order Ticket Stubs.
Then tap Cash Drawers, select your cash drawer, and tap Test Cash Drawer to make sure it pops open automatically.
